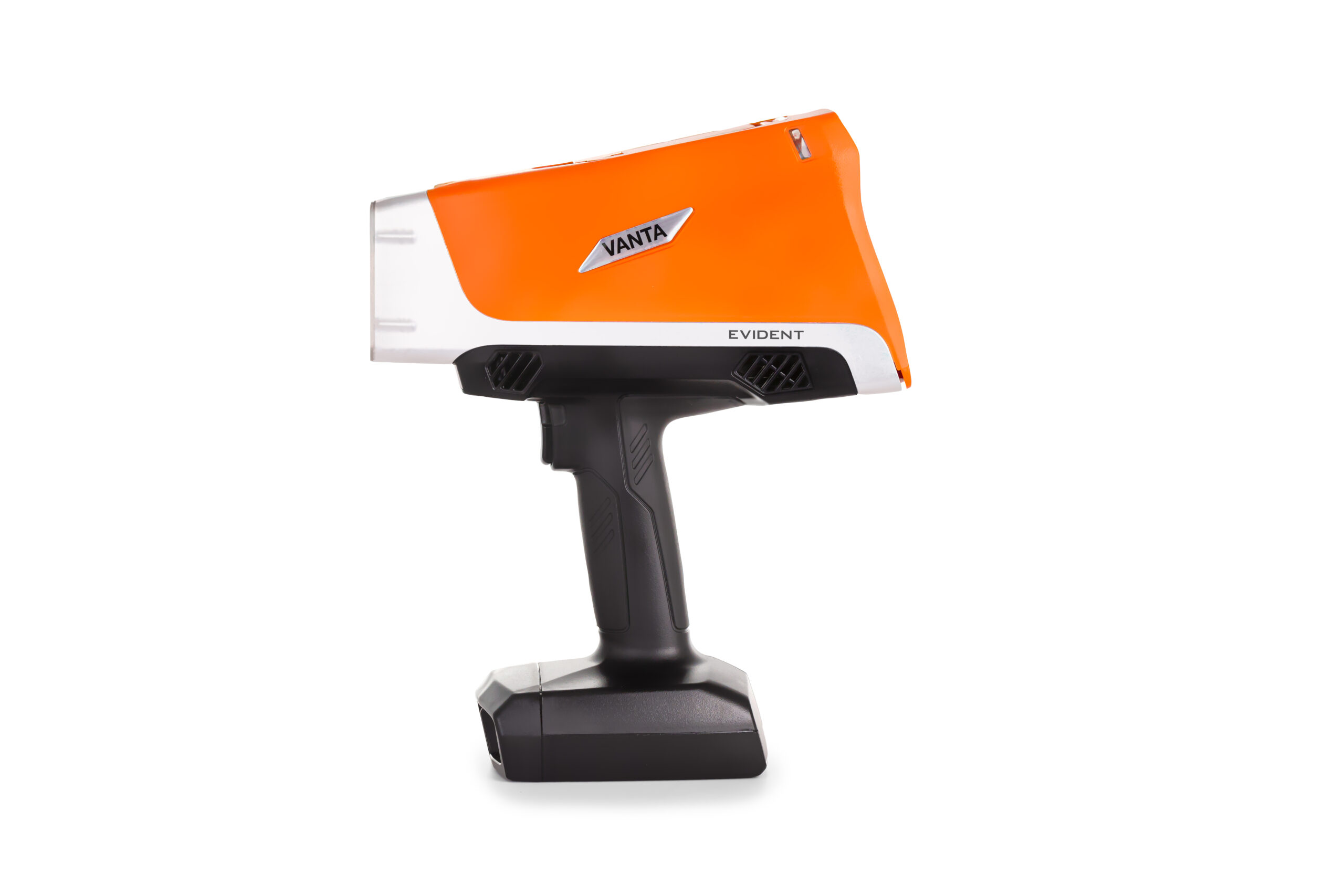

Vanta Element Handheld XRF Analyzer


The new Vanta Element is an advanced handheld XRF Analyzer that provides in only one second elemental analysis for alloy grade identification and on-screen grade comparison for your scrap metal, metal manufacturing and recycling and quality control process.

Thanks to its smartphone-like touch screen, it is easy to use and easy to learn, reducing user training.

Vanta Element analyzers provides:

  • Accurate and Repeatable Results
  • The innovative Axon Technology™ stability
  • Convenient Data Management
  • Wireless connectivity for easy data transfer to a network folder (optional)
  • Cloud data storage and real-time remote data viewing using the Olympus Scientific Cloud™
  • Direct export to a USB drive
  • 1 GB Industrial microSD™ card for storing results

All Olympus analyzers are built to resist at all demanding environments also thanks to their stainless-steel faceplate for wear protection and the thick Kapton® window (50 µm).

They are certificated:

  • IP54 rated for protection against dust and moisture
  • Drop tested (MIL-STD-810G) to protect against falls and reduce the need for costly repairs
  • Rated for continuous testing from -10 °C to 45 °C (14 °F to 113 °F)

Technical Specifications

Dimensions (W x H x D) 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.)
Weight 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
Excitation Source 2-watt X-ray tube with 35 kV tungsten anode
Primary Beam Filtration Fixed aluminum filter
Detector Silicon PIN detector
Power Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating Environment Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle
Humidity: 10% to 90% relative humidity noncondensing
Drop Test Military Standard 810-G 4-foot (1.3 M) drop test
IP Rating and Detector Shutter IP54: dust protected and protected against water splashing from all directions
Operating System Linux®
Data Storage microSD™ slot with removable 1 GB Industrial SD card included
USB (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
(1) USB 2.0 type mini-B port for connection to computer.
Wireless LAN Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor
Bluetooth Supports Bluetooth® with an optional USB adaptor
Warranty One-year warranty
Optional Accessories Field Stand, Soil Foot, and Holster
