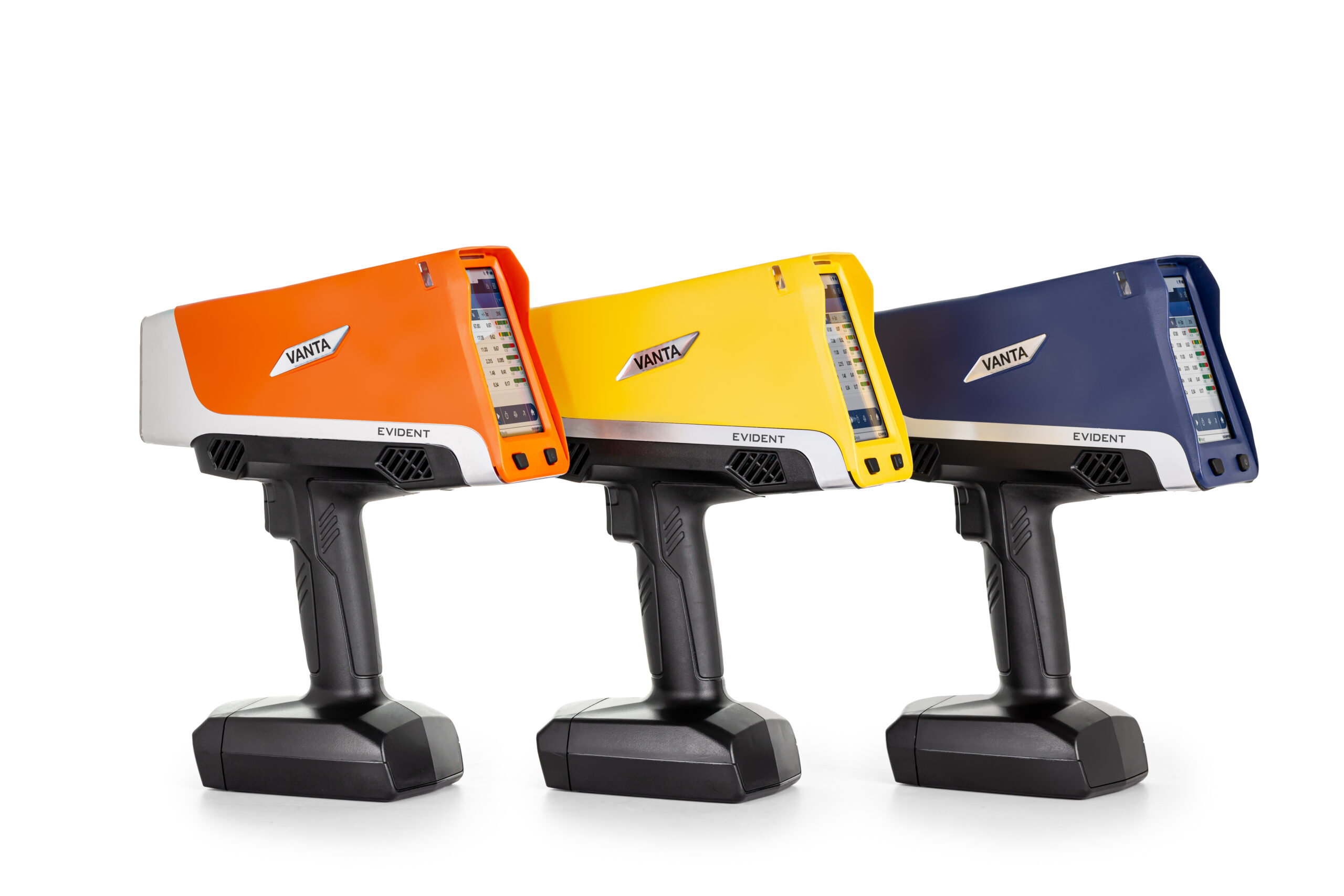

XRF portatile Serie VANTA

Description

The Vanta analyzer is the most advanced handheld X-ray fluorescence (XRF) on market that provides a fast and accurate elements analysis and alloy identification providing results same as laboratory-quality but directly in the field, no matter the environment or working conditions.

It is built to be tough, rugged and durable also under extreme conditions.

Its intuitive user software is easy to use and needs minimal training.
Thanks to Axon technology coupled with a new quad-core processor make Vanta analyzers remarkably responsive for fast, accurate, and best repeatable results in the least amount of time.
Data export is simple via a USB flash drive, Wireless LAN, or Bluetooth.
The touch screen display is clear and bright in any light.
Embedded GPS to pair results with precise GPS coordinates for documentation and data mapping.
Optional 5-megapixel panoramic camera; combine images with XRF data and GPS coordinates.
Cloud technology enabled.
The Vanta analyzers are:

Drop tested using U.S. Department of Defense methods (MIL-STD-810G), reducing the risk of damage and costly repairs when a device is dropped or jostled.
IP55 rated dust and water resistant to protect against the hazards found in even the most challenging environments.*
Withstands a temperature range of -10 °C to 50 °C (14 °F to 122 °F) at full duty cycle, so you waste less time waiting for your analyzer to cool.**
The detector shutter on C and M series models helps prevent punctures so you can analyze rough surfaces with confidence.
* M Series analyzers are IP54 rated.
** With optional fan. Operates continuously at 33 °C without the fan.

Software

All Vanta™ handheld XRF analyzers have a variety of features for customize and adapt your analyzer to fit your specific workflow.

SmartSort: automatically lengthens or shortens test time based on material to save time; obtain aluminum grade results in as little as 1 second.

Grade match messaging: real time and/or pop-up messages with familiar trade or grade names or special handling instructions to reduce user training and increase efficiency.

Nominal value: automatically identifies the likely presence of elements invisible to XRF based on grade specifications.

Residual library: set a maximum tolerated concentration for residual elements in grade families.

On-screen grade comparison: compare close grades side-by-side to know which alloy is the best match with nominal and residual values.

Customizable UI: set the UI up the way you want to maximize throughput and efficiency.



Technical Specifications

Dimensions (W x H x D) 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.)
Weight M series, C series, and L series: 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery
Element: 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
Excitation Source 4-watt X-ray tube with application-optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W))
M series (Rh W) and C series (Ag): 8–50 kV
C series (Rh W): 8–40 kV
L series (W) and Element (W): 35 kV (2 watts)
Primary Beam Filtration M and C series: 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot
L series and Element: Fixed aluminum filter and no internal collimation
Detector M series: Large-area silicon drift detector
C series: Silicon drift detector
L series and Element: Silicon PIN detector
Power Removable 14.4 V Li-ion battery with hot-swap capability (M, C, and L series only) or
18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating Environment Temperature range for the M, C, and L series: −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan);
Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F)
Humidity: 10% to 90% relative humidity non-condensing
Drop Test Military Standard 810-G 4-foot (1.3 M) drop test
IP Rating and Detector Shutter M series, and Element IP54: dust protected and protected against water splashing from all directions
C and L series IP55: dust protected and protected against water jets from all directions
M and C series: Solid detector shutter to help prevent detector damage
Pressure Correction M and C series: Built-in barometer for automatic altitude and air density correction
GPS M, C, and L series: Embedded GPS / GLONASS receiver
Operating System Linux®
Cloud enabled with user fleet manager capability
Data Storage microSD™ slot with removable 1 GB industrial SD card included
USB (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
(1) USB 2.0 type mini-B port for connection to computer.
Wireless LAN Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor
Bluetooth Supports Bluetooth® with an optional USB adaptor
Aiming Camera Full VGA CMOS camera (Optional)
Panorama Camera 5-megapixel CMOS camera with autofocus lens (Optional on M, C, and L series)
Warranty M, C, and L series: Three-year warranty; Element: One-year warranty
Selected Optional Accessories M, C, and L series: Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, Probe Shield, and VLW Collimation Mask (L series only)
Element: Field Stand, Soil Foot, and Holster
